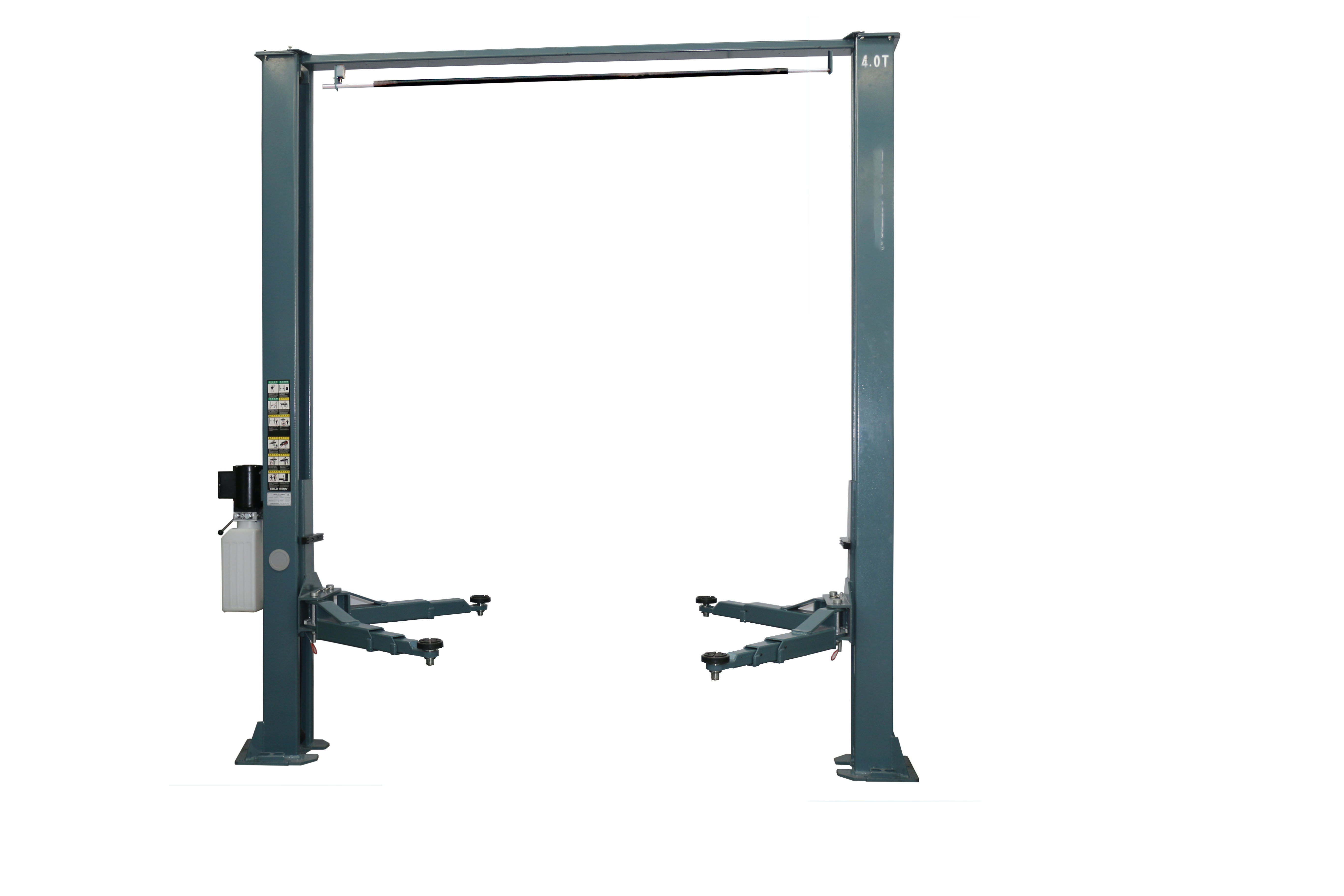

2 Post Gantry Lift-YL030238

 Dual cylinder design, High strength chain driving  system

High quality sealing rings imported from Italy.

High quality power unit， endurable, safe and

 Door Strip with elegant appearance.

Pass 115% dynamic loading test and 150% static  loading test.

 Dual anti-skidding safety device from colum  ladder to hydraulic seal protection to ensure  double safety on the staying of the vehicle special  hydraulic system desigh to avoid over-load  running.

CE certificated

2YQJ-3800B

Capacity:3800KG

Lift High:1850mm

Motor power:2.2KW

Oil pressure:17-19MPa

Power supply:220V/380V,  50Hz

Lift time:≤ 50s

2YQJ-4000B

Capacity:4000KG

Lift High:1850mm

Motor power:2.2KW

Oil pressure:17-19MPa

Power supply:220V/380V,  50Hz

Lift time:≤ 50s
