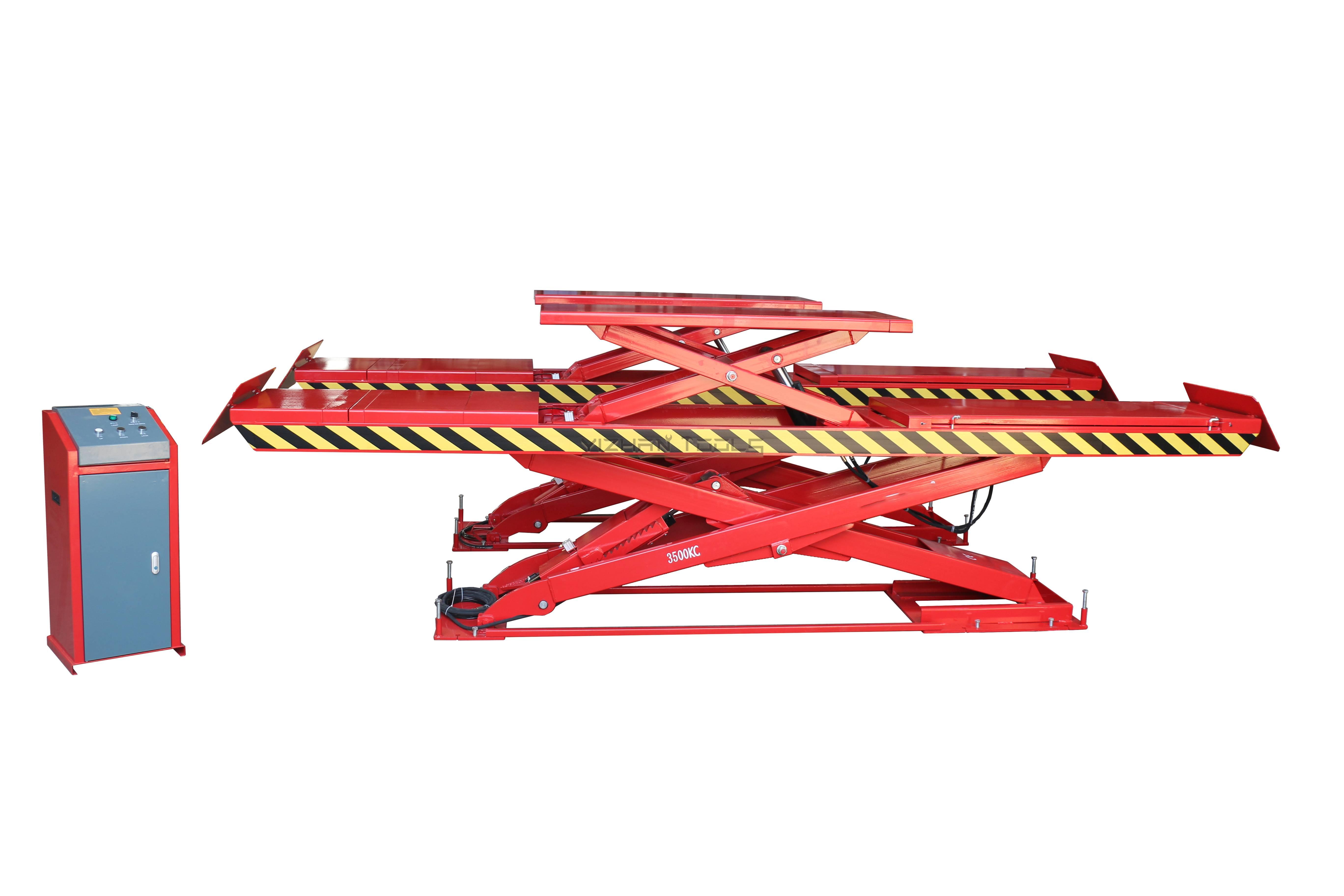

Ultra-thin Composite Scissor Lift-YL03S35

 YQJ-3500D

 Installation on the ground.

 Suitable for four-wheel positioned, car body check  and repair.

 High quality sealing rings imported from Italy.

 High quality power unit， endurable, safe and  reliable.

 Safe voltage control system, avoid the danger of  high-voltage electric shock.

Pneumatic release, reduce the noise of machine  running extremely.

 24V voltage control system. ⑧ Adjust independently on single platform, simple  debugging.

 Equipped with hydraulic lock and built-in pressure  detection function, the tubing pressure loss  caused by any reason will make the machine stop  lifting.

CE certified.

Capacity:3500KG

Min High:235mm

Max High:1850mm

Second Lift High:400mm

Motor power:2.2KW

Oil pressure:17-19MPa

Power supply:220V/380V,  50Hz

Lift time:≤ 50s
