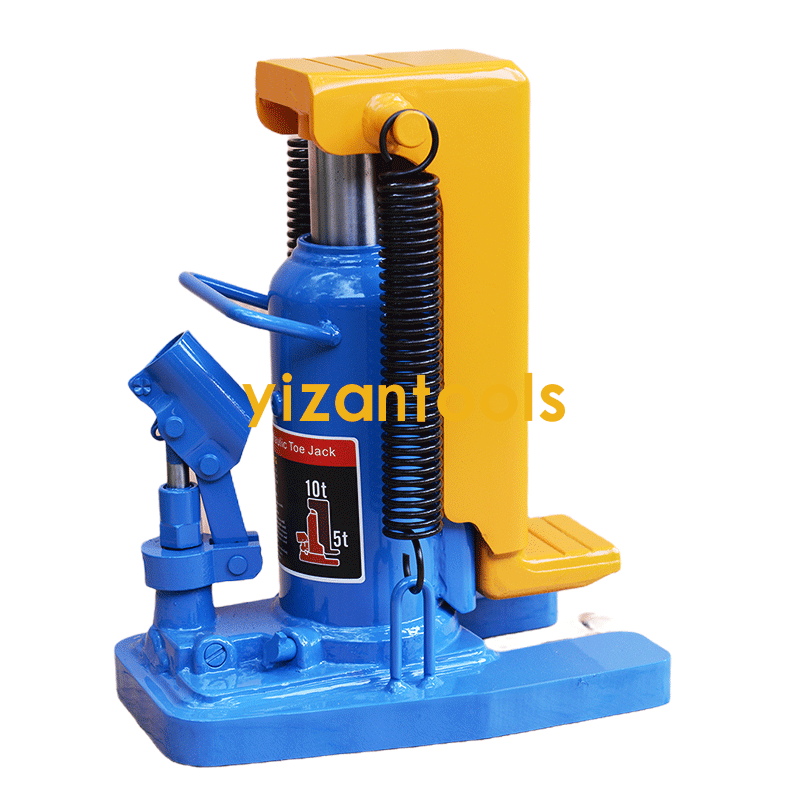

Toe Hydraulic Jack
Toe Jack-YJ051105
In compliance with U.S.safety standards:ASME B30.1
E lifting equipment used in the minimum accessible space. Low height foot-lifting.
Able to lift both at the top and in the bottom. Precision-oriented to avoid the hydraulic cylinder under side load.
With a reset spring for 5 tons,10tons,15tons,25tons.
Capacity:10 T
Head capacity: 5 T
Min.toe Height:25
Max.toe Height:145
Min.head Height:295
Max.head Height:415
Pacakge size:305X220X320mm
Weight:24
